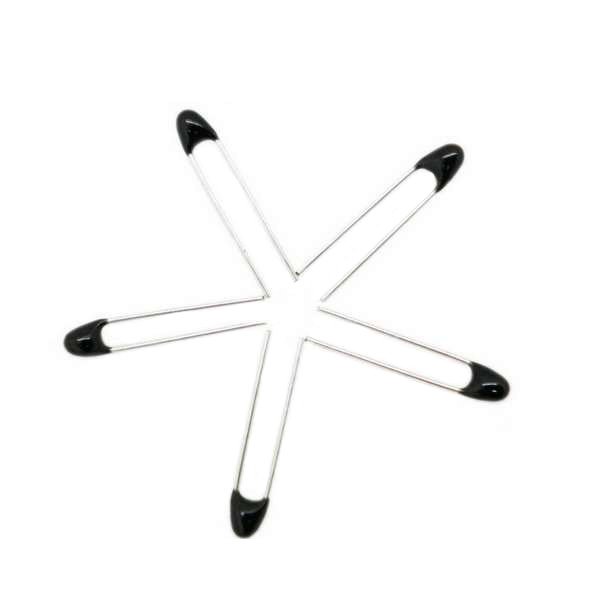

ET1S Series Standard Lead Epoxy Coated NTC Thermistor

The ET1S series NTC thermistors are small size epoxy coated sensing devices. Industry standard characteristics and tolerances makes them ideal choice for low cost high volume applications.

Download


Description

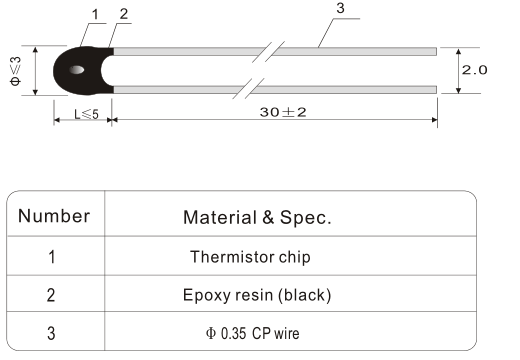

DRAWING（unit：mm）:

ET1S:

FEATURES:

  • Low Cost
  • High Long Term Stability
  • Very good endurance against thermal shock
  • Good Interchangeability and consistency

APPLICATIONS:

  • Batter pack
  • Wireless charger
  • Home application
  • Cooling and heating equipment
  • Ambient temperature monitoring
  • Electronic thermometer, calendar, clock temperature display

OPTIONS:

  • Alternative bead size :OD2.0mm-OD5.0mm
  • Alternative CP wire Length: 7mm-30mm
  • Alternative CP wire diameter: Φ0.35mm, Φ0.4mm, Φ0.5mm
  • Alternative non-standard resistance values and tolerances
