HomeTEMPERATURE ELEMENTSNTC ThermistorsGlass Encapsulated Thermistors GT1 Series Axial Type Glass Encapsulated NTC Thermistor
Click to enlarge

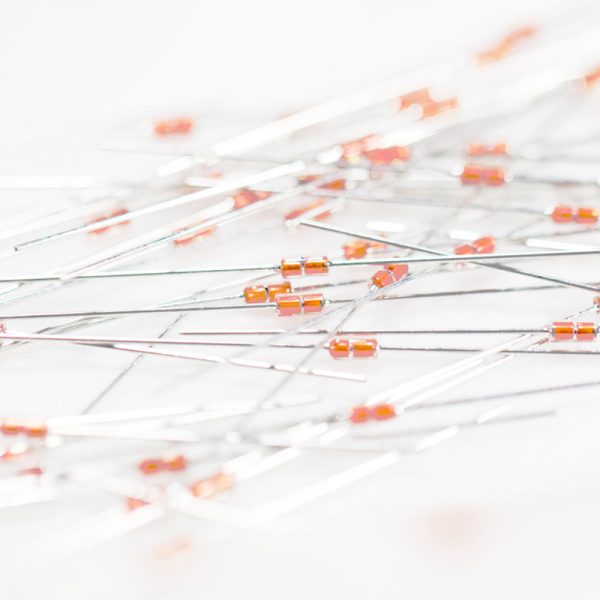

GT1 Series Axial Type Glass Encapsulated NTC Thermistor

The GT1 series thermistors are manufactured using super stable NTC chips which are hermetically sealed in a glass package. They are heat resistant by virtue of glass –sealing. It can be used in many tough environments like oil smoke, dust or humidity.Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment.

Download


Share
Facebook
  • Description
  • QUICK QUOTE
Description

DRAWING(unit:mm):

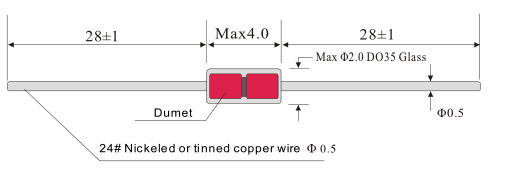

GT1A:

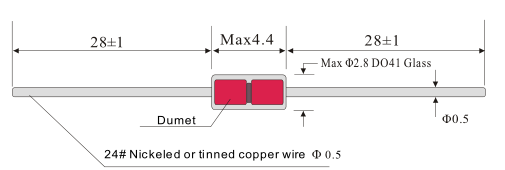

GT1B:

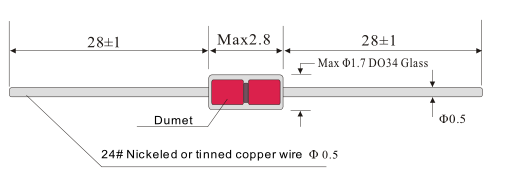

GT1C:

FEATURES:

  • Low cost
  • Operation up to 250℃ with high long-term stability
  • Working temperature can be expanded to 300°C with nickel leads
  • Resistant to corrosive atmospheres and harsh environments
  • Tight tolerances on resistance and B value
  • Designed for cost effective solid state sensor
  • Due to its rugged construction and small size, it is capable of automaticmounting in circuit board

APPLICATIONS:

  • Microwaveoven meat probes
  • Coffee maker
  • Toaster
  • Air conditions
  • Inductioncookers
  • Automotive electrical power steering system
  • Automotive air suspension system
  • Other home appliance
  • Other automotive application

OPTIONS:

  • Glass bead size : DO35 Max OD2.0*4.0mm,DO41 Max OD2.8*4.4mm,DO34 Max OD1.7*2.8mm
  • Wire material: CP wire(Copper Clad Steel Wire) , availablesolder plated or nickel plated
  • Wire gauge:24# OD0.5mm
  • Wire length: 28±1mm
  • Package way: Ammo pack 5000pcs/box, bulk 500pcs/bag
  • Stock parameters: 10k3270,10k3380,10k3435,10k3950,10k4100,100k3950,100k3977,100k3990,100k4010,100k4250,50K3950,5k3270,5k3470,5k3950,3k3470,1k3200,
