HomeTEMPERATURE ELEMENTSNTC ThermistorsEpoxy Coated Thermistors ET2P Series PVC Wire Epoxy Coated NTC Thermistor
Click to enlarge

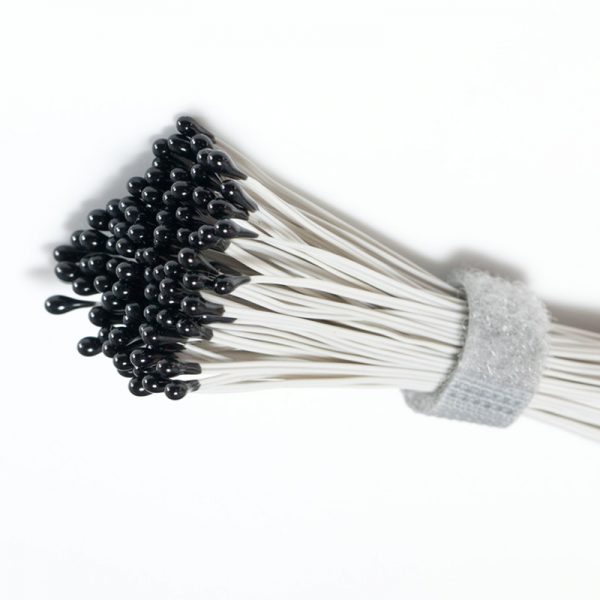

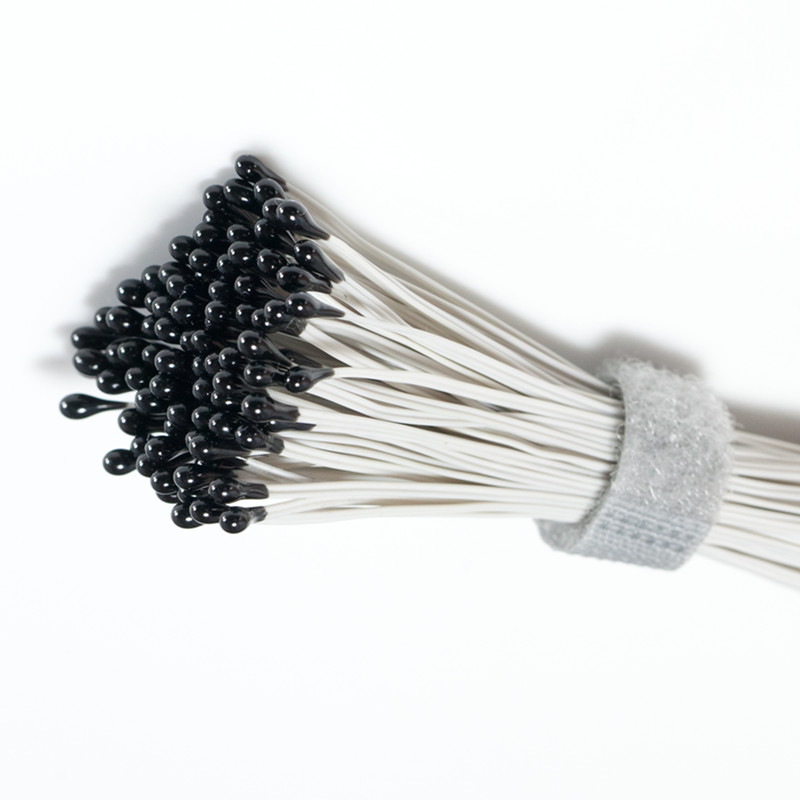

ET2P Series PVC Wire Epoxy Coated NTC Thermistor

The ET2P series are small size epoxy coated sensing devices with using PVC flat wire . Wide range of tolerances and wire configurations makes them ideal choice for temperature sensing, control and compensation. It is easy and flexible to use .

Download


Share
Facebook
  • Description
  • QUICK QUOTE
Description

DRAWING(unit:mm):

ET2P:

FEATURES:

  • Custom size and wire configuration
  • Small size and fast thermal response time
  • High stability and reliability
  • The wire can be moderately bent

APPLICATIONS:

  • Mobile phones, mobile power supplies, power tools
  • Battery pack
  • Home appliance

OPTIONS:

  • Alternative bead size : OD1.6mm~OD3.5mm
  • Alternative PVC wire gauge:32#,30#,28#,26#
  • Alternative PVC wire UL No.: UL2651,UL2468,UL1685,UL1571
  • Alternative PVC wire length: Min15mm~Max2000mm
  • Alternative parameter: 10k3435,10k3950,50K3950,100k3950,100k4010,100k4250, etc.

THE MAIN PURPOSE:

  • NTC can detect the battery pack temperature in real time during charging, and it can effectively protect against over temperature
  • Thermistor detects the ambient temperature and will allow fast charging
  • The temperature probe can detect the heat generated by the battery caused by abnormal current
  • NTC temperature sensor performs energy compensation for the remaining amount of energy display voltage measurement
  • If the temperature exceeds the setting range during charging, the protection board will take an alarm signal or force the termination of charging after the NTC probe detects it
