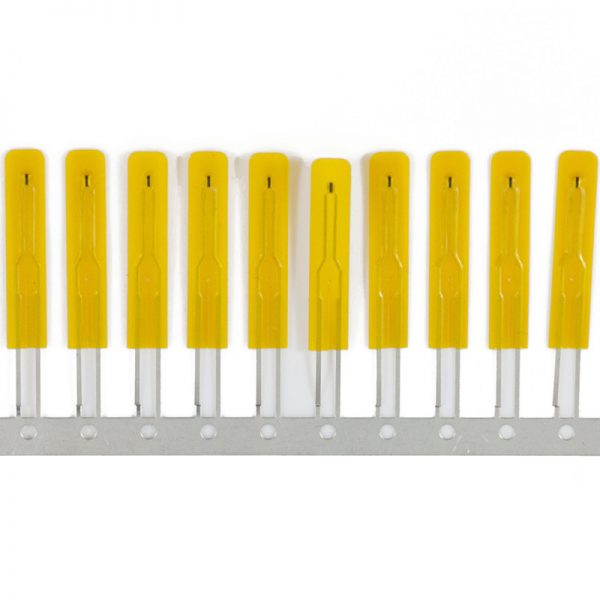

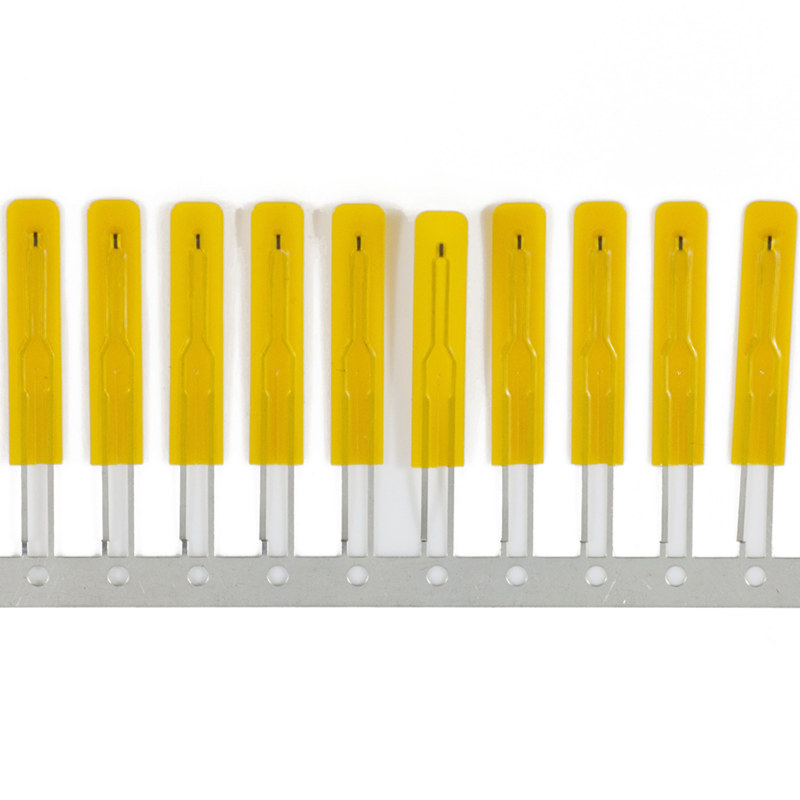

FT Series Polyimide Film Type NTC Thermistor

The FT series are are frequently used for applications where limited space is concern. With typical thickness of 0.6mm they are ideal choice for precise temperature measurement between flat surfaces where quick response time is critical.

Download

Categories: , , Tags: , , , ,
Description

DRAWING（unit：mm）:

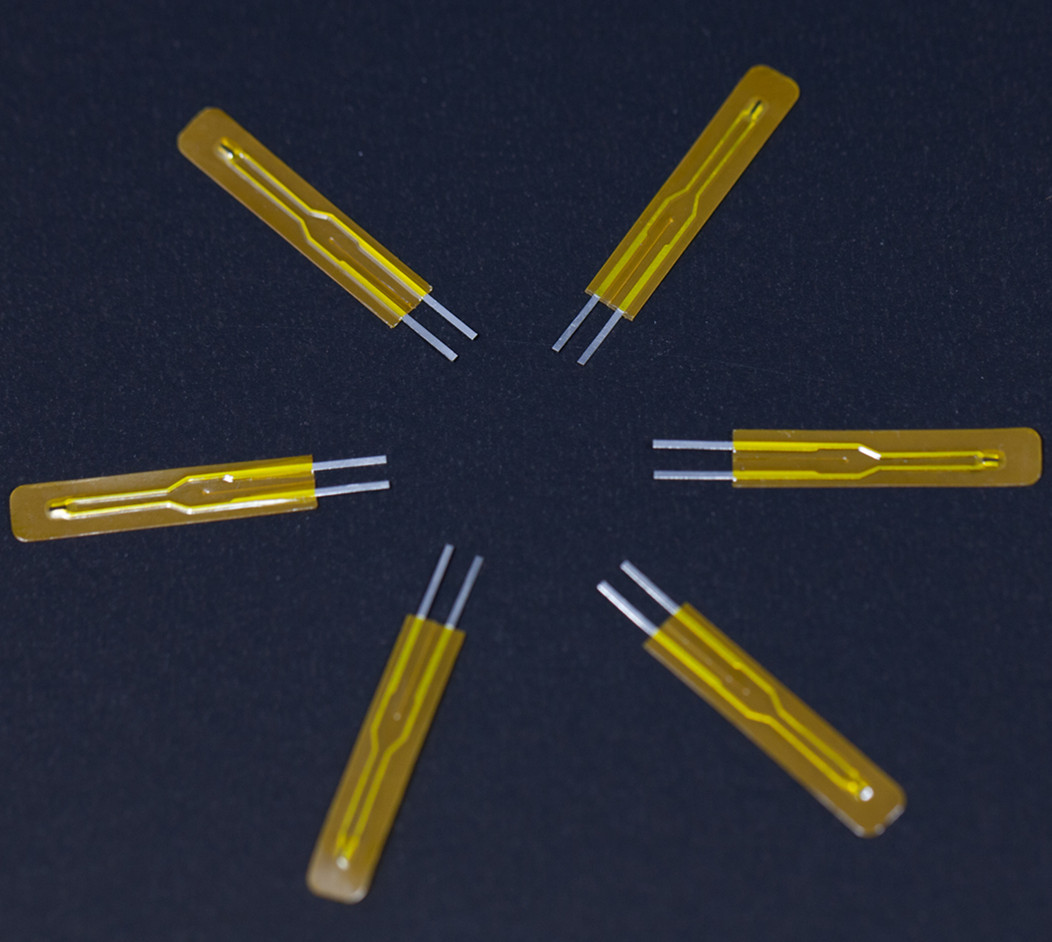

FT-25mm:

FT-50mm:

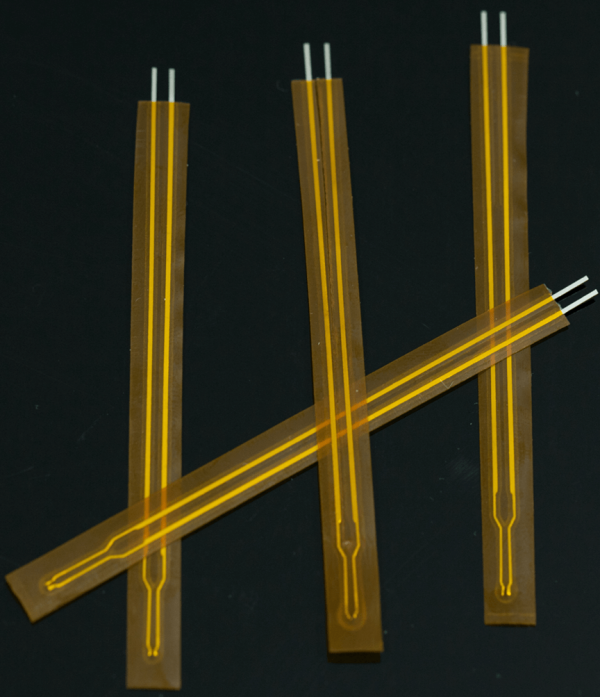

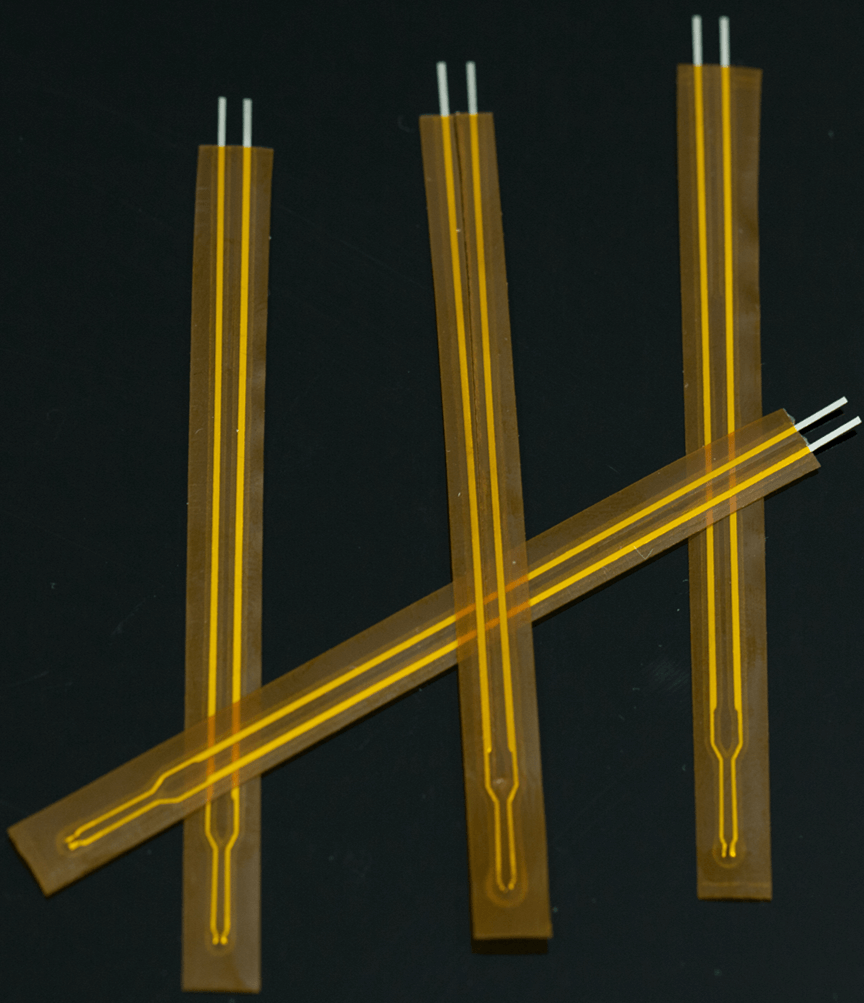

FT-75mm:

FEATURES:

  • Excellent surface temperature measurement
  • Very thin and flexible:Various shapes and applications
  • Strong mechanical strength :high reliability against force
  • Fast response time: high reliability for sensing time
  • Good heat resistance, thermal shock and moisture proof
  • Operating temperature range: -40℃~105℃

APPLICATIONS:

  • PCM of Battery
  • CPUof Computer
  • Mobile communication
  • Copies, printer office appliances, mobile power
  • Fire alarm system, grain storage system, aluminum power control panel

OPTIONS:

  • Alternative film width size : 3.6mm~5.5mm
  • Alternative wire length: Min17mm~Max75mm
  • Alternative parameter: 10k3435,10k3950,50K3950,100k3950,100k4010,100k4250,etc.
