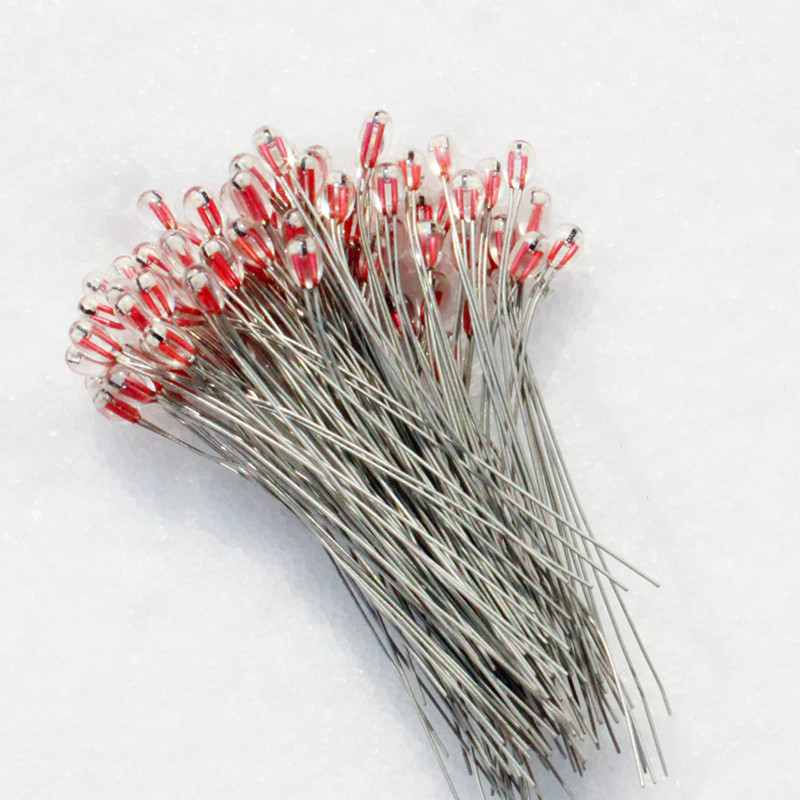

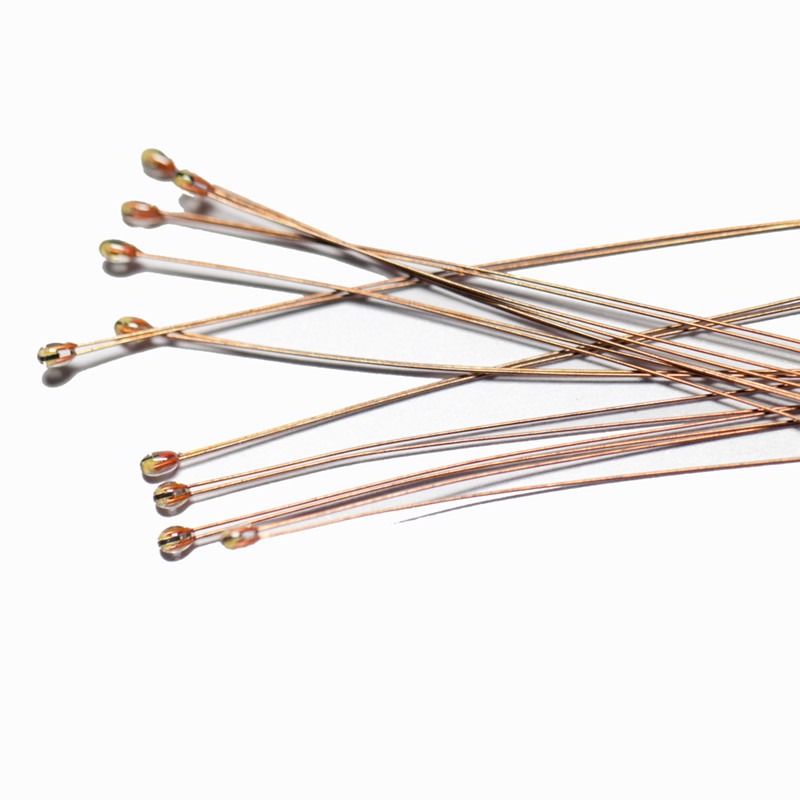

GT2 Series Radial Type Glass Encapsulated NTC Thermistor

The GT2 series thermistors is designed for high environmental reliability and wide temperature range of usage (-40℃~300℃) .Lead wires are coming out from one side, called radial lead type. They are heat resistant by virtue of glass –sealing. It is suitable for equipment requiring a quick response and for measurements in a narrow space. It can be applied to various fields, such as home appliance, automobile , medical, and other industrial applications.

Download

Categories: , , Tags: ,
Description

DRAWING(unit:mm):

GT2H:

GT2L:

GT2M:

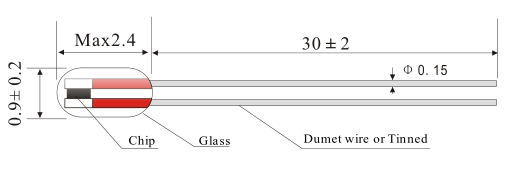

GT2S:

FEATURES:

  • Very short response time
  • Small dimensions
  • Excellent stability at high temperature
  • Excellent stability at high humidity condition

APPLICATIONS:

  • 3D printer
  • Copying machines
  • Barbecue thermometer
  • Water heaters
  • Inverter fans
  • Electric irons
  • Hair dryers
  • Lithium battery temperature protection
  • Automotive electrical power steering system
  • Automotive air suspension system
  • Other home appliance
  • Other automotive application

OPTIONS:

  • Glass bead size : OD2.0*max4.1mm,OD1.8*max4.1mm,OD1.25*max3.2mm,OD0.9*max2.4mm
  • Wire material: dumet wires (copper-clad FeNi) , available solder plated
  • Wire gauge: OD0.25mm,OD0.2mm,OD0.15mm
  • Wire length: 30±2mm or 65±5mm
  • Stock parameters: 10k3380,10k3435,10k3470,10k3950,47k3950,50k3950,100k3950
