DRAWING(unit:mm):

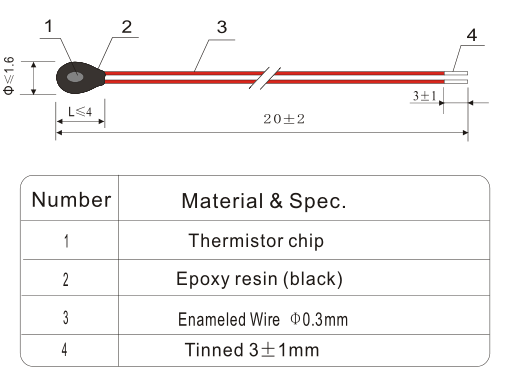

ET2E1:
![ET2E1 drawing](https://www.atcsensing.com/wp-content/uploads/2019/03/ET2E1-drawing-1.png)

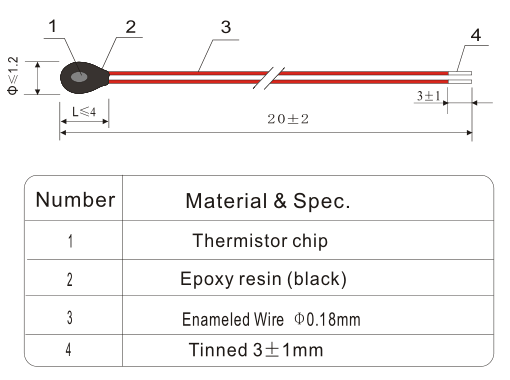

ET2E2:
![ET2E2 drawing](https://www.atcsensing.com/wp-content/uploads/2019/03/ET2E2-drawing-1.png)
FEATURES:
- Good insulation and fast thermal conductivity
- Small size and light weight
- High stability and annual drift rate of the resistance value is within 0.03%
- Good Interchangeability and consistency
- High precision
- The wire can be moderately bent
APPLICATIONS:
- Electronic thermometer, medical equipment, medical equipment
- Temperature meter, temperature recorder, electronic heating toy
- Mobile power temperature measurement, aluminum battery protection board
- Home appliance control panel
OPTIONS:
- Alternative Bead size : OD1.2mm-OD2.0mm
- Alternative Enamelledwire diameter: Φ0.18mm, Φ0.3mm
- Alternative parameter: 22k3150,30k3150,150k3250,1k4100,2.2k4100,68k3800,100K4200,250K4850, 1M4750
- The wire length and bead size can be specified by the customer.
