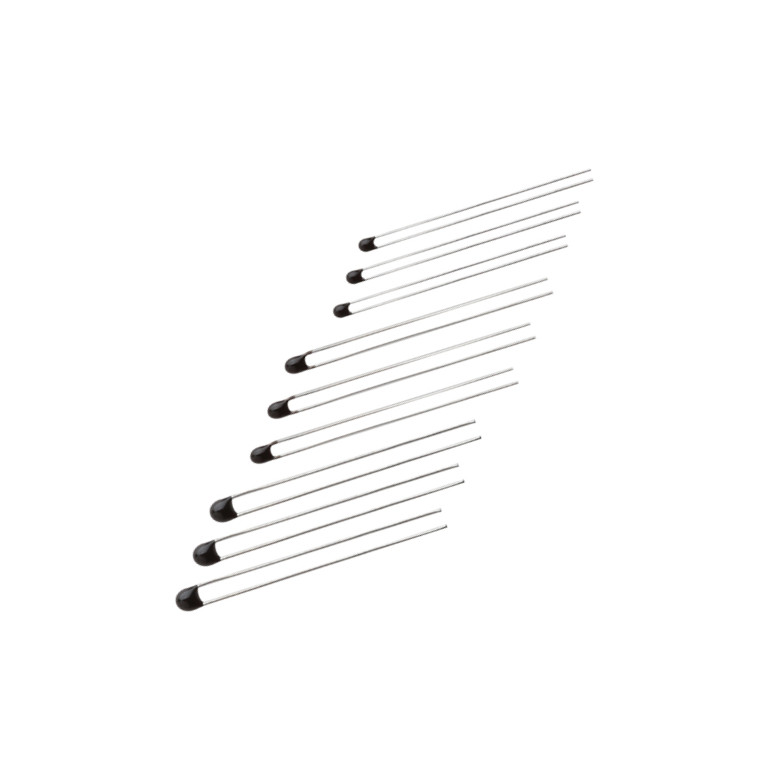

ET1H Series High Precision Miniature Epoxy Coated NTC Thermistor

Miniature leaded epoxy coated thermistors are manufactured using the state of the art manufacturing techniques as those used to produce precision interchangeable devices. This results in devices with superior long term reliability characteristics especially suitable for temperature measurement, temperature control and temperature compensation applications.

Download

Categories: , , Tags: , ,
Description

DRAWING（unit：mm）:

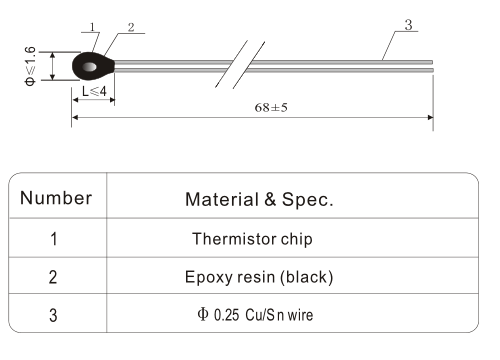

ET1H1:

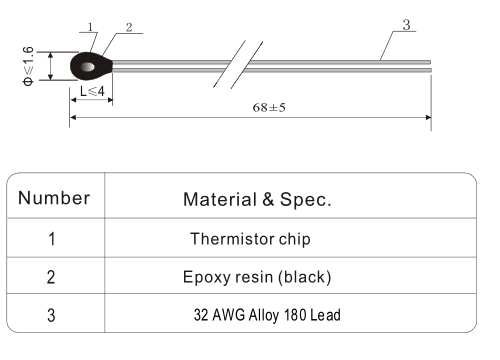

ET1H2:

FEATURES:

  • Small bead size:MaxΦ1.6×4
  • High precision ±0.2℃（0℃-70℃）
  • Interchangeability
  • High stability and reliability
  • Fast thermal response time

APPLICATIONS:

  • Medical equipment
  • Thermometers
  • Precision instruments
  • Tight tolerance instrumentation

OPTIONS:

  • Alternative wire type: OD0.25 Tinned copper wire ,32 AWG Alloy 180 Leads
  • Alternative wire length:30mm-110mm
  • Alternative Bead size : OD1.6mm-OD2.0mm
  • Alternative parameter: 2K3830, 2.252K3976, 2.252K3935,3K3960, 10k3892,10K345,10K3977
