HomeTEMPERATURE ELEMENTSNTC ThermistorsEpoxy Coated Thermistors ET1F Series Coated Lead Epoxy Coated NTC Thermistor
Click to enlarge

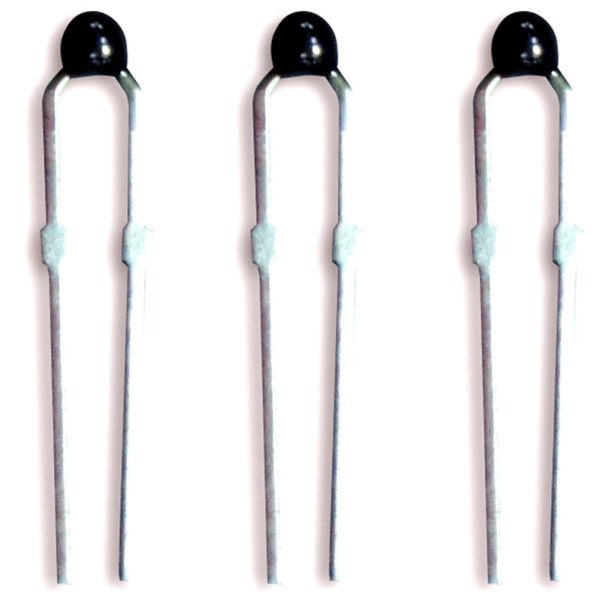

ET1F Series Coated Lead Epoxy Coated NTC Thermistor

The ET1F series NTC thermistors are small size epoxy coated sensing devices. Industry standard characteristics and tolerances makes them ideal choice for low cost high volume applications.

Download


Share
Facebook
  • Description
  • QUICK QUOTE
Description

DRAWING(unit:mm):

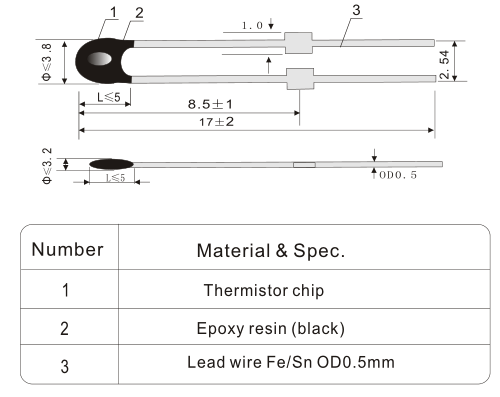

ET1F1:

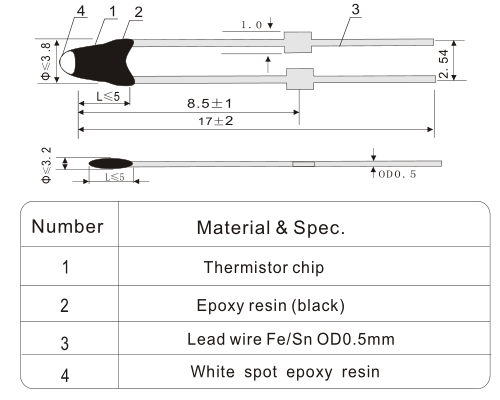

ET1F2:

FEATURES:

  • Rigid lead wire structure
  • High Long Term Stability
  • Excellent thermal cycle endurance
  • Low cost

APPLICATIONS:

  • Designed for automated assembly
  • Engine management systems
  • Ambient temperature monitoring
  • Temperature control and compensation

OPTIONS:

  • Alternative iron tin plated wire length: 9mm,17mm
  • Alternative iron tin plated wire diameter: OD0.5
  • Alternative parameter: 10K3435,10K3977,2K3180,1K3100,100K4190
