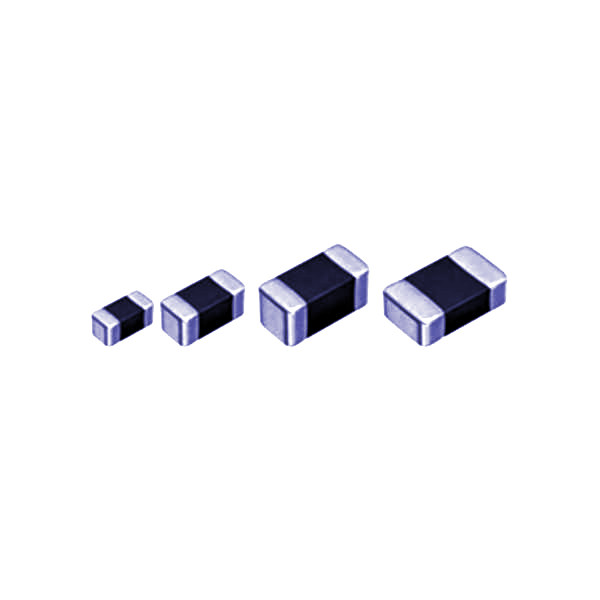

CT(SMD) Series Surface Mount Type NTC Thermistor

The SMD series 0201/0402/0603/0805/1206 size chip NTC Thermistor have Ni barrier termination and provide excellent solderability and offer high stability in environment by unique inner construction.

Download

Add to wishlist
Categories: , , Tags: , , , ,
Description

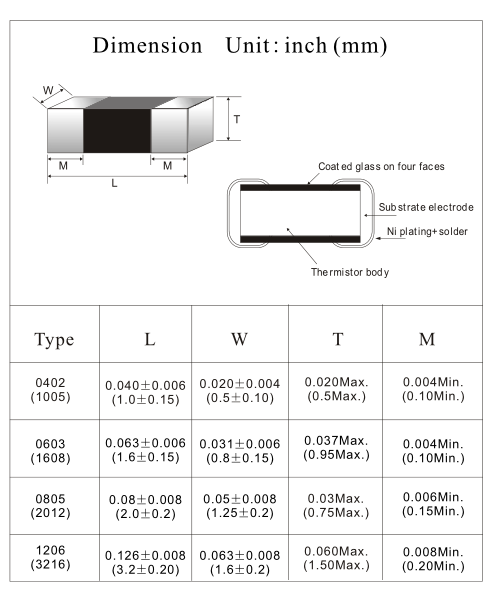

DRAWING（unit：mm）:

CT :

FEATURES:

  • Surface mountable
  • Small size
  • Low cost
  • Excellent solderability
  • Rated to 125℃ operating temperature

APPLICATIONS:

  • Temperature compensation for transistor, IC, and crystal oscillator in mobile communications
  • Temperature sensor for rechargeable batteries
  • Temperature compensation of LCD
  • Temperature compensation and sensing in automobile entertainments such as CD, MD and Tuner
  • Temperature compensation in general use of electric circuits

OPTIONS:

  • SMD size : 0201,0402,0603,0805,1206
  • Stock parameters: 10k3435,10k3500,10k3950,10K3977,47k4050,220k4200,etc.
