Home TEMPERATURE ELEMENTS NTC Thermistors Epoxy Coated Thermistors ET2X Series XLPE Wire Epoxy Coated NTC Thermistor
ET2T Series Teflon Wire Epoxy Coated NTC Thermistor
Back to products
ET2K Series Kynar Wire Epoxy Coated NTC Thermistor

ET2X Series XLPE Wire Epoxy Coated NTC Thermistor

The ET2X series are small size epoxy coated sensing devices with using XLPE wire . Wide range of tolerances and wire configurations makes them ideal choice for temperature sensing, control and compensation. It is easy and flexible to use .

Download

Categories: Epoxy Coated Thermistors, NTC Thermistors, TEMPERATURE ELEMENTS Tags: epoxy coated thermistor, ntc thermistor, XLPE wire epoxy coated thermistor
Share:
  • Description
  • Shipping & Delivery
Description

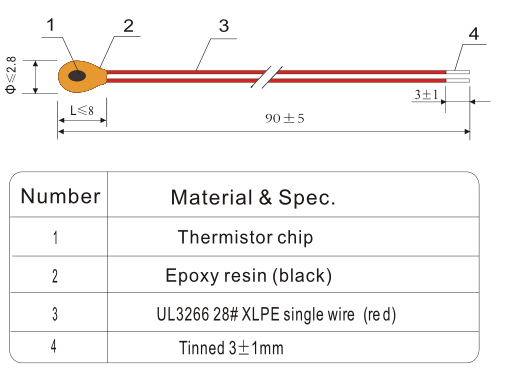

DRAWING(unit:mm):

ET2X:

FEATURES:

  • Epoxy coated, excellent mechanical strength
  • Insulated wire can be bent as per installation conditions
  • Excellent thermal cycle endurance
  • Small size and fast thermal response time
  • Custom size and wire configuration

APPLICATIONS:

  • Mobile phones, mobile power supplies, power tools
  • Battery pack
  • Home appliance

OPTIONS:

  • Alternative bead size : OD1.4mm~OD3.5mm
  • Alternative XLPE wire gauge: 32#,30#,28#,26#
  • Alternative XLPE wire UL No.: UL3266-HF,UL3302-HF, UL4469-HF,UL1430-HF
  • Alternative XLPE wire length: Min15mm-Max2000mm
  • Alternative parameter: 10k3435,10k3950,50K3950,100k3950,100k4010,100k4250,etc
Shipping & Delivery
