FEATURES:
- The chip has small volume
- Fast reaction speed
- Stable long-term performance and high reliability
- Especially when the motor is out of phase, it can react quickly and protect the motor
APPLICATIONS:
- Motor protect
- Power Device

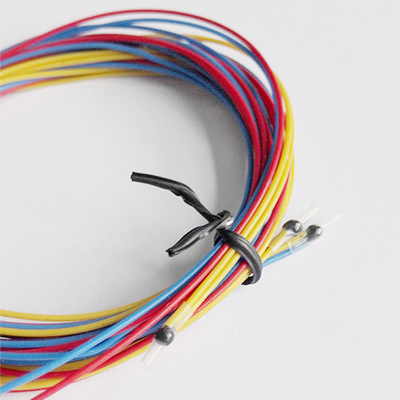

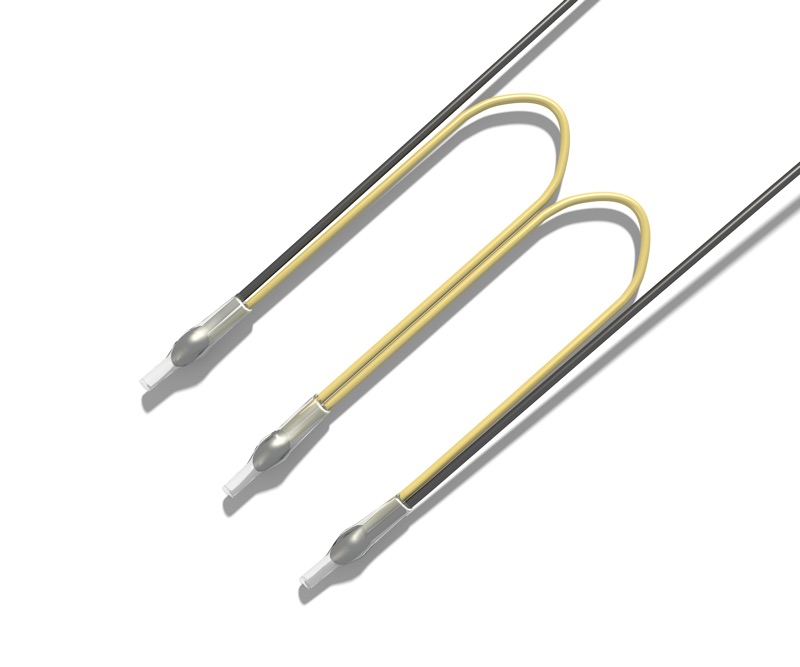

MZ6 Series Motor Protection PTC Thermistor
MZ6T PTC motor protection type thermistor is specially designed for over-temperature protection of motors and other parts according to international standards DIN-44081 and DIN-44082. The PTC thermistor is placed in the three-phase winding of the motor. When the temperature reaches the insulation level temperature, the resistance of the PTC rises, and the high-resistance signal is transmitted to the control protector, and the protector disconnects the motor line according to the signal to protect the motor.
