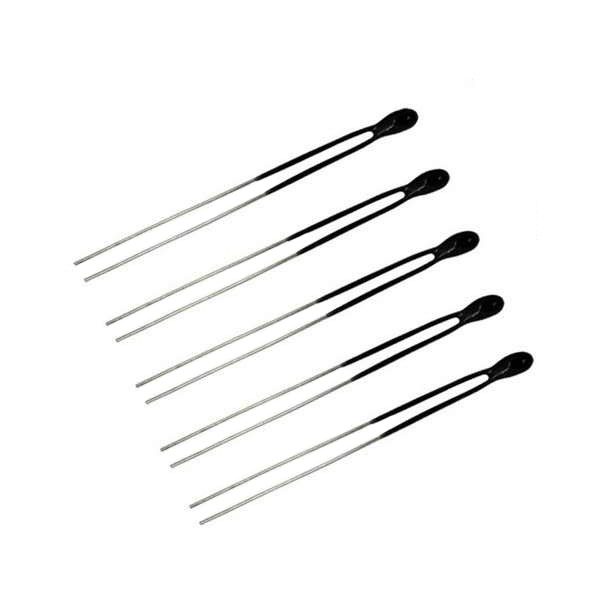

ET1C Series Coated Lead Epoxy Coated NTC Thermistor

ET1C1:

ET1C2:

• High Long term reliability and stability
• Two coating layer protect chip from physical shockand moisture
• Coating on lead performinga good insulation property and preventing moisture which could be flow in through lead wire. If it is applied for protect tube sensor, it shows a good insulation and good withstand voltage properties

• Vehicle temperature sensors: water temperature sensor, coolant temperature sensor, air temperature sensor, oil temperature sensor, etc.
• Fire alarm

• Alternative coating length of wire : 12mm-20mm
• Alternative CP wire diameter: OD0.4, OD0.5
• Alternative parameter: R80=0.309k±3%,B25/50=3600±1% /R80=0.327k±3%, B25/50=3470±1%/R80=0.265k±3%,B25/50=3950±1% / R25=1M±3%, B25/85=4600±2%
